ZXS系列固定式雙臂連續混砂機(Stationary Continuous Sand Mixer)

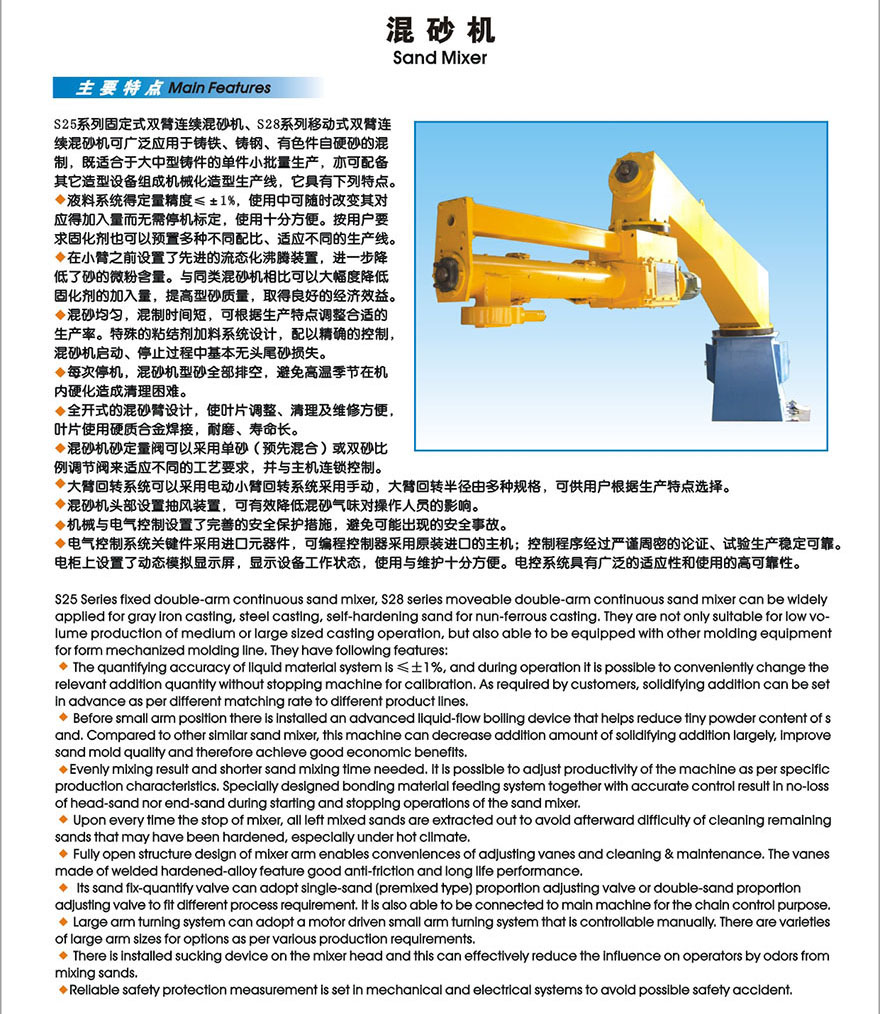

ZXS25系列固定式雙臂連續混砂機、ZXS28系列移動式雙臂連續混砂機可廣泛應用于鑄鐵、鑄鋼、有色件自硬砂的混制，既適合于大中型鑄件的單件小批量生產，亦可配備其它造型設備組成機械化造型生產線，他具有下列優點。
ZXS25 Stationary Continuous Sand Mixer & ZXS28 Mobile Continuous Sand Mixer can be widely used in iron foundry, steel foundry, and the mixture of nonferrous self-hardening sand. It can be produced by piece in small quantity, and it also can be equipped with other equipments to form mechanical style line, its advantages are as follows:
1、 液體系統的定量精度≤±1%，使用中可隨時改變其對應的加入量而無需機
標定，使用十分方便。按用戶要求粘結劑也可預置多種不同配比、適應不同的生產要求。
The measurement accuracy of Liquid System is equal to or less than ±1%. It’s very convenient as it could change its corresponding feeding without powering off the machine. In order to adapt deferent producing requirements, bonding materials could be pre-collocated according to deferent percentage.
2 在小臂之前設置了先進的流態化沸騰裝置，進一步降低了砂的微粉含量。與同類混砂機相比，可以大幅度降低粘結劑的加入量，提高型砂質量，取得良好的經濟效益。
Advanced Fluid Boiling Set is collocated before forearm to reduce the dust contain of sand. Compared with same Sand Mixer, it can greatly decrease binder input, upgrade product quality, and gain better economic profits.
3 混砂均勻，混制時間短，可根據生產特點調整合適的生產率。特殊的粘結劑加料系統設計，配以精確的控制，混砂機啟動、停止過程中基本無頭尾砂損失。
The machine mixes sand well proportioned, and take little time, so, appropriate productive capacity is adaptable according to production features. The design of special bond materials inputting system collocated with precise control, during the machine power on and power off, there is no sand lost.
4 每次停機，混砂機型砂全部排空，避免高溫季節在機內硬化造成清理困難。
Every time the machine powers off, it empties sand entirely, avoiding difficulties of sweeping the remaining in high temperature seasons.
5 全開式的混砂臂設計，使葉片調整、清理及維修方便，葉片使用硬質合金焊接，耐磨、壽命長。
It is convenient for impeller to adjust, sweep, and maintain due to the design of fully open style sand-mixer-arm. The impeller enjoys longevity and it is wearable because of the use of alloy welding.
6 混砂機砂定量閥可以采用單砂（預先混合）或雙砂比例調節閥來適應不同的工藝要求，并與主機連鎖控制。
Proportional valve of the machine can adopt single sand (pre-mixed), or double-sand adjuster to adapt different technique requirements, and it chained to the host computer as well.
7 大臂回轉系統可以采用電動并配以無級調速系統，小臂回轉系統采用手動，大臂回轉半徑有多種規格，可供用戶根據生產特點選擇。
The system of back arm revolving collocated with speed adjuster can be electronically controlled, whereas forearm revolving controlled by hand. The radius of revolving has many specifications, which can be chosen according to production features.
8 混砂機頭部設置排風扇，可有效降低混砂氣味對操作人員的影響。
The head of sand mixer sets electronic fan, so it can decrease the influence of the sand’s smell to the operator.
9 機械與電氣控制設置了完善的安全保護措施，避免可能出現的安全事故。
Perfect safeguards have been set by technical & electrical control, and it can avoid accident that might occur.
10 電氣控制系統關鍵件采用進口元器件，可編程控制器采用原裝進口的主機；控制程序經過嚴謹周密的論證、試驗生產穩定可靠。電柜上設置了動態模擬顯示屏，顯示設備工作狀態，使用與維護十分方便。電控系統具有廣泛的適應性和使用的高可靠性。
The main parts of the electrical control system are imported; the programmer controller uses original imported host computer, and the procedure has been concrete proved, trial produced which turn out to be credible. Dynamic simulated display is set in the electric wardrobe, showing work state. It is user-friendly & maintain-friendly. It enjoys wide ad aptness and high credibility.

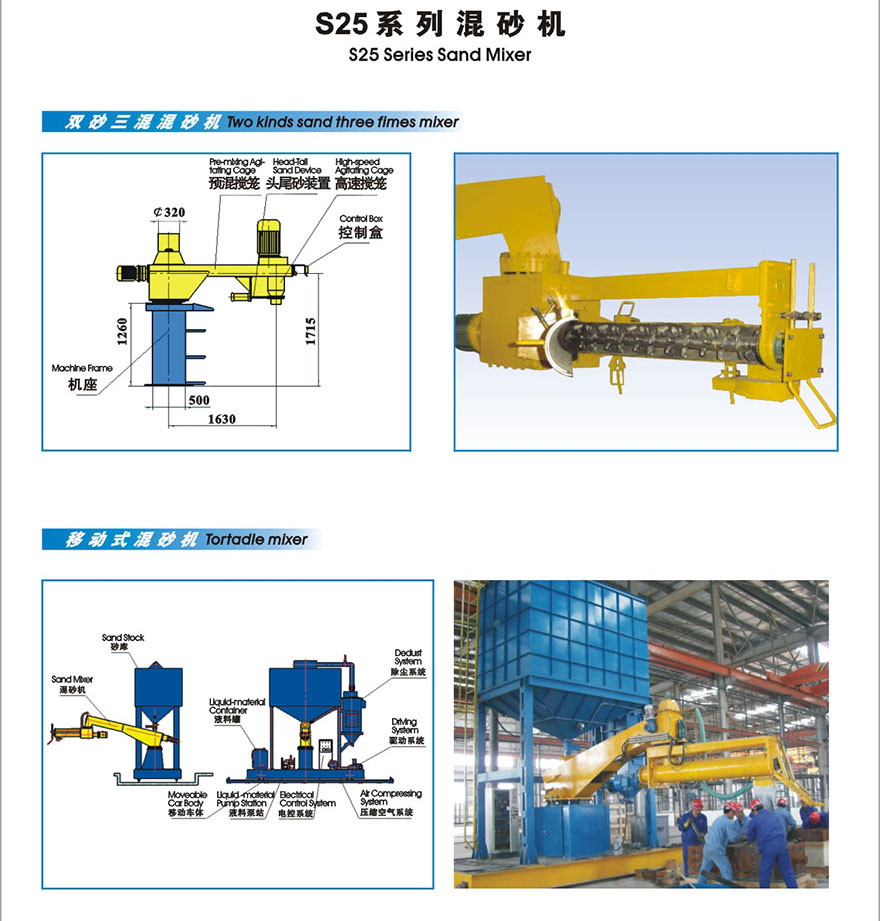

ZXS25系列混砂機可根據用戶的需求，配以移動小車、供砂系統及附屬設備可改制成ZXS28系列移動式混砂機，具有如下特點：
ZXS25 Sand Mixer can be collocated with mobile dolly according to client’s needs. Sand Feeding System & its affiliated equipment can be made into ZXS28 Mobile Sand Mixer, and the characteristics are as follows:
● 臺車啟動、停止過程運行平衡，并設有安全防護裝置。
● Working steadily during power on & power off, and safeguard equipment collocated.
● 可配備適合工藝特點的供砂系統。使得混砂機在任何地點均可加砂。臺車上去除了機械化運輸裝置，輕便靈活，維修工作量小。
Sand Supply System can be collocated according to its techniques, and it is available to feed sand at any place any time. The machine has deducted mechanical conveying equipment, so it is moveable and easy to maintain.
選用快換供砂系統時，供砂和混砂可同時進行，互不影響。
When choosing Quick-changing Sand Feeding System, it can supply sand & mix sand spontaneously, and they don’t influence each other.

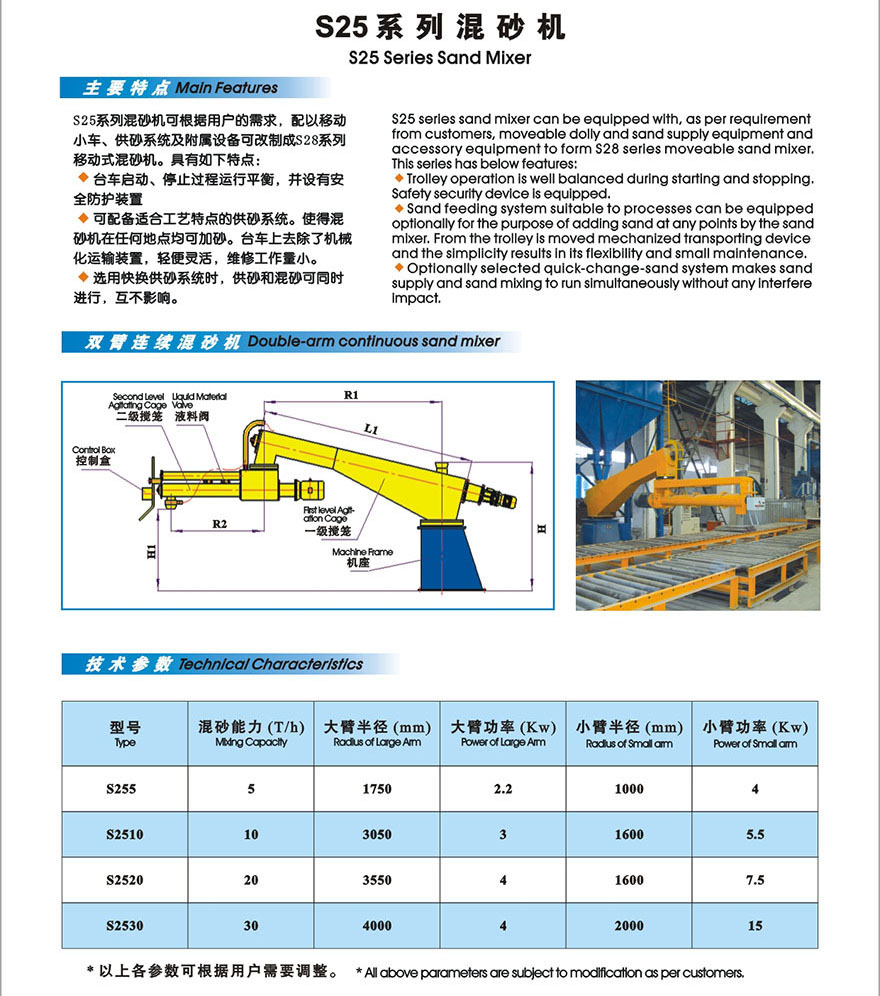

ZXS25系列連續式混砂機技術參數(technical Reference)：
|
型 號 |
混砂能力（T/h） |
大臂半徑 |
大臂功率（Kw） |
小臂半徑 |
小臂功率（Kw） |
|
ZXS255 |
5 |
1750 |
2.2 |
1000 |
4 |
|
ZXS2510 |
10 |
3050 |
4 |
1600 |
7.5 |
|
ZXS2520 |
20 |
3550 |
4 |
1600 |
11 |
以上各參數可根據用戶需要調整。(Technical Reference is adjustable.)
